Sunstone Introduces Joist Hangers & Wall Plate Straps for the UK Construction Market
- Share
- publisher
- Clara
- Issue Time
- May 13,2026
Summary
Sunstone introduces joist hangers and wall plate straps for the UK construction market. The joist hangers are available in two options: stamped version with a one‑time tooling fee or laser‑cut version with no tooling fee. Both ranges feature galvanised finish, multiple sizes – ideal for timber frame and structural applications.
Now let us introduce our latest structural hardware series for the UK and European construction market: Joist Hangers & Wall Plate Straps.

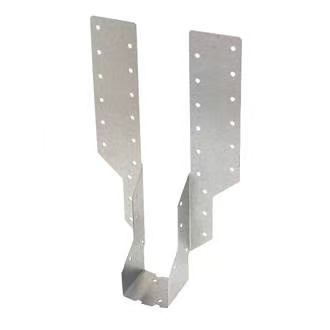

1. Joist Hangers – Jiffy Type, Timber to Timber
Keeping timber frame construction efficient and secure has just become easier with the launch of Sunstone Joist Hangers, designed specifically for timber‑to‑timber connections.
Key Features:
✔ Heavy-Duty Galvanised Finish – Made from DX51D + Z275 galvanised steel for excellent corrosion resistance.
✔ Optimised Nail Hole Pattern – Staggered 4mm holes for quick and secure fixing, reducing installation time.
✔ Standard Dimensions – 44mm / 75mm width options, 0.9mm thickness, with a total length of 258mm / 273mm.
✔ Easy to Install – Lightweight design with pre‑punched nail holes for on‑site convenience.
Available Options:
Stamped version – lower unit price with one-time tooling fee
Laser-cut version – no tooling fee, suitable for smaller quantities or faster turnaround
2. Wall Plate Straps – Light Duty & Heavy Duty
For timber frame wall plate fixing and roof restraint applications, the Sunstone Wall Plate Straps series delivers reliable structural connections with flexible sizing.
Key Features:
✔ Heavy-Duty Galvanised Finish – DX51D + Z275 galvanised steel for long‑lasting outdoor performance.

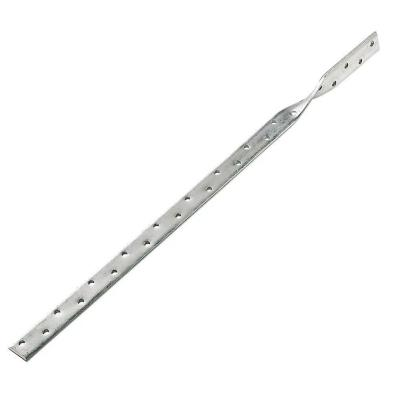

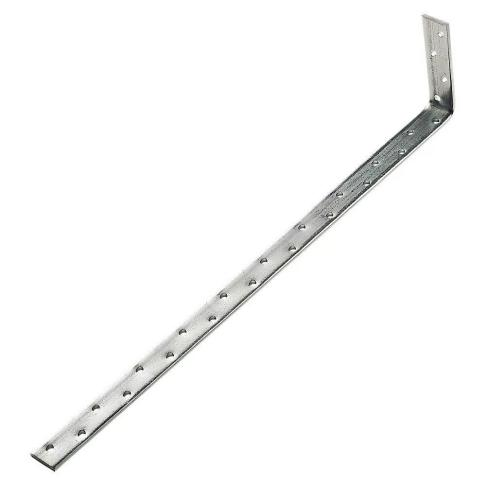

✔ Three Types Available – Straight (flat bar for standard connections), Bent (L‑shaped with 100mm bend for corner and edge connections), and Twist (90° twist at ends for rafter and cross‑timber restraint).
✔ Six Length Options – 600mm, 900mm, 1000mm, and 1200mm available for each type.
✔ Two Load Grades – Light Duty (2.5mm thickness) and Heavy Duty (4.0mm thickness).
✔ Staggered 6mm Nail Holes – Standardised hole pattern for quick and secure fixing.
Sunstone specialises in high-quality structural hardware and stamped parts, combining engineering expertise with flexible manufacturing to deliver products that builders and distributors can trust.
